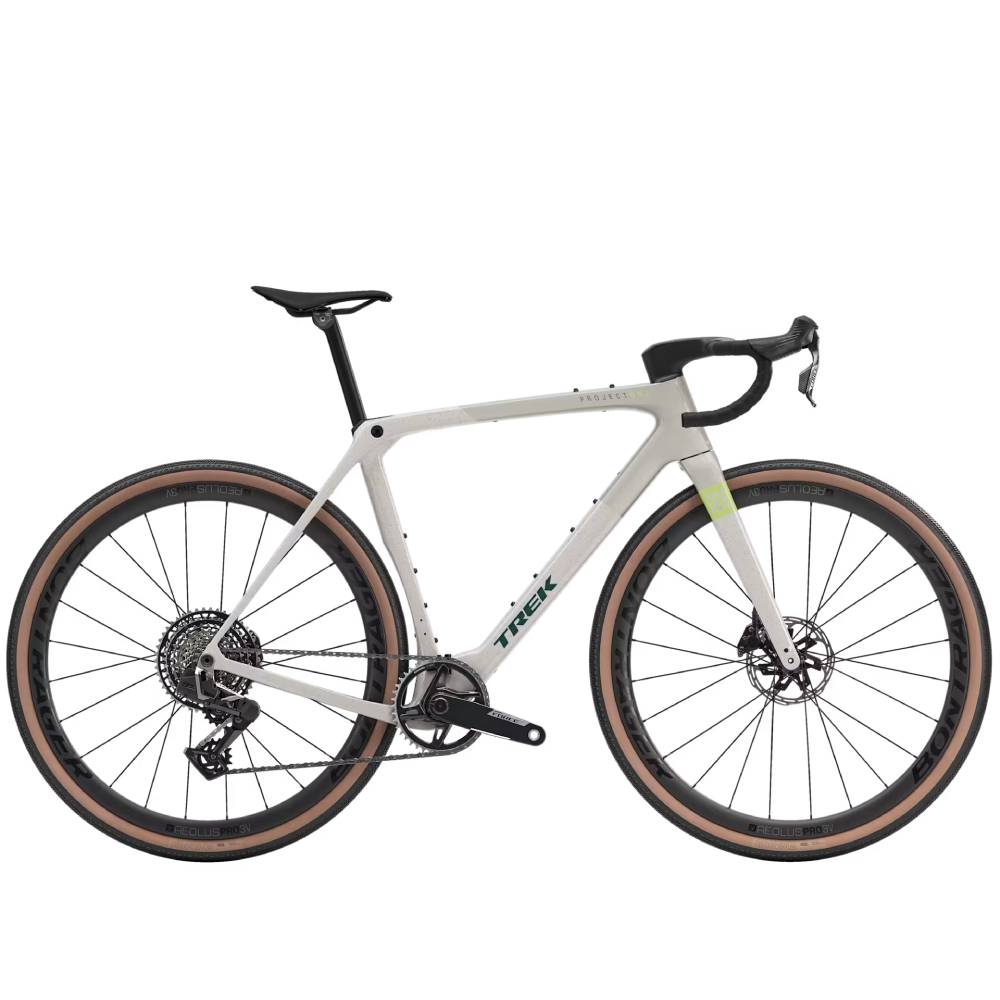

Trek Checkmate SLR 7 AXS

The Checkmate SLR 7 AXS is a carbon gravel race bike built to toe the line and kick up dust on the long and rough road. To deliver ultimate race-day performance, Checkmate combines a lightweight aero design with IsoSpeed and Gravel Race geometry that keeps you poised for the attack without eating up your energy. It’s topped off with a SRAM Force XPLR AXS E1 wireless drivetrain, carbon wheels, and Trek Aero RSL bar/stem for a lightweight build.

Frameset
Frame
800 Series OCLV Carbon, IsoSpeed, hidden mudguard mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat-mount disc, integrated chainkeeper, removable FD hanger, UDH, 142×12 mm chamfered thru axle
Fork
Checkmate SLR full carbon, tapered carbon steerer, hidden mudguard mounts, flat-mount disc, 12×100 mm thru axle

Weight
Weight
ML – 8.47 kg/18.68lb (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

E-system
Battery
SRAM AXS battery pack (with charger)

Drivetrain
Shifter
SRAM Force AXS E1
Rear derailleur
SRAM Force XPLR AXS, 46T max cog
*Crank
Size: XS, S, M, ML
SRAM Force XPLR with AXS Power Meter, 42T, DUB Wide, 165 mm length
Size: XS, S
SRAM Force XPLR E1 w/ Power Meter, 42T, DUB Wide, 160mm length
Size: M, ML, L, XL
SRAM Force XPLR with AXS Power Meter, 42T, DUB Wide, 170 mm length
Size: L, XL
SRAM Force XPLR with AXS Power Meter, 42T, DUB Wide, 172.5 mm length
Bottom bracket
SRAM DUB Wide, T47 threaded, internal bearing
Cassette
SRAM Force XPLR XG-1371, 10-46, 13-speed
Chain
SRAM Force E1, 12/13-speed
Max. chainring size
See service manual

Wheels
Wheel front
Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25 mm rim width, 100×12 mm thru axle
*Wheel rear
Size: XS
Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25 mm rim width, SRAM XD-R driver, 142×12 mm thru axle
Size: XS, S, M, ML, L, XL
Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25 mm rim width, 142×12 mm thru axle
Skewer front
Bontrager Switch chamfered thru axle
Skewer rear
Bontrager Switch chamfered thru axle
Tyre
Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700×42 mm
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
Rim strip
Bontrager TLR
Max tyre size
45 mm without mudguards, 38 mm with mudguards (as measured, see manual for details)

Components
Saddle
Trek Aeolus Pro, carbon fibre rails, AirLoom lattice 145 mm width
Seatpost
KVF aero carbon seat post, 5 mm offset, 280 mm length
*Handlebar/stem (integrated)
Size: XS
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 37 cm control width, 40 cm drop width, 70 mm stem length
Size: S
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 80 mm stem length
Size: M
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 90 mm stem length
Size: ML, L
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 41 cm control width, 44 cm drop width, 100 mm stem length
Size: XL
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 41 cm control width, 44 cm drop width, 110 mm stem length
*Handlebar tape
Size: XS, S, M, ML, L, XL
Trek EcoTack
Size: XS, S, M, ML, L, XL
Trek gel cork
Brake rotor
SRAM Paceline X, rounded, CentreLock, 160 mm
Rotor size
Max brake rotor sizes: 180 mm front and rear
