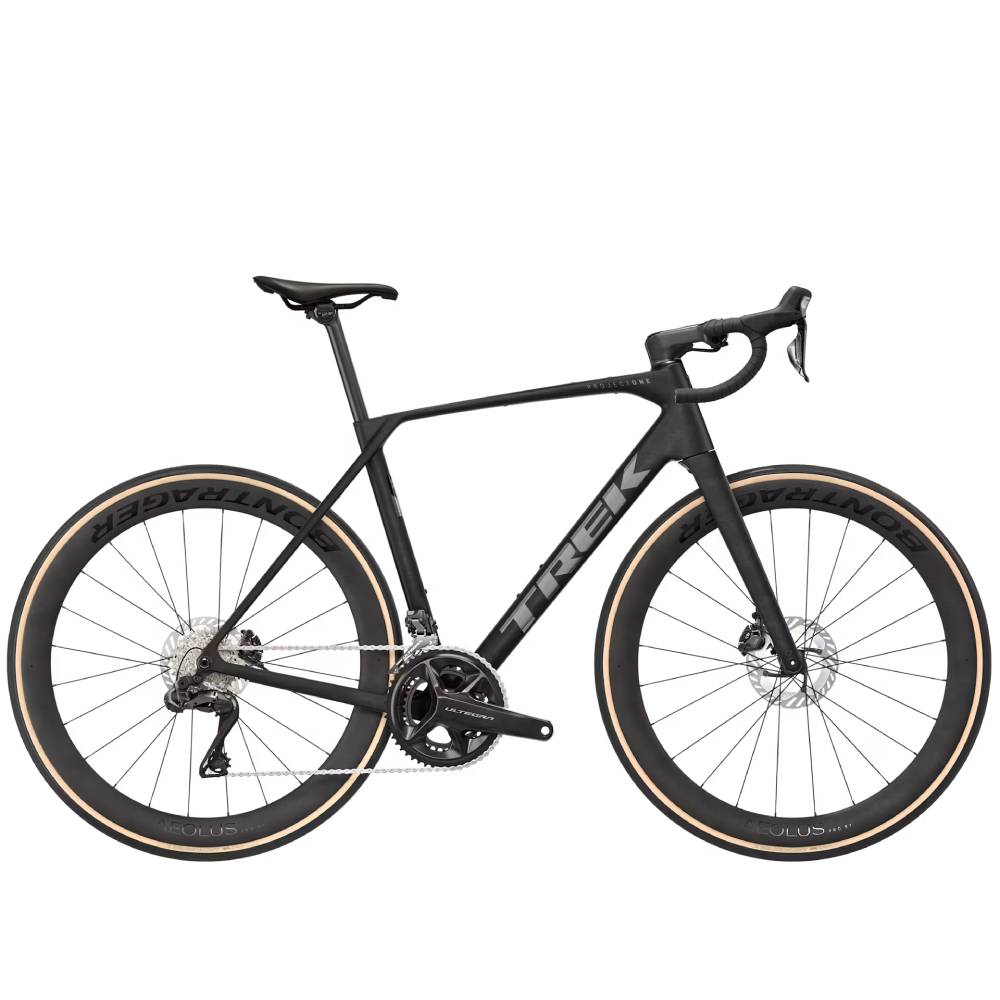

Trek Domane SLR 7 Gen 5

Domane SLR 7 Gen 5 is an ultralight endurance road bike built for all-day comfort and performance. It’s crafted from our highest-level 900 Series OCLV Carbon and features a minimalist setup that goes back to the roots of road riding, with modern features like all-road tire clearance and a more comfortable carbon riser bar. It’s finished with Bontrager Aeolus Pro 51 OCLV Carbon wheels and a Shimano Ultegra Di2 2×12 drivetrain.

Frameset
Frame
900 Series OCLV Carbon, internal cable routing, integrated frame bag mounts, T47, integrated chain keeper, fender mounts, flat mount disc, UDH 142x12mm thru axle
Fork
Domane SLR carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle

Weight
Weight
ML – 7.66 kg / 16.89 lbs (with tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

E-system
Battery
Shimano BT-DN300

Drivetrain
Shifter
Shimano Ultegra R8171 Di2, 12-speed
Front derailleur
Shimano Ultegra R8150 Di2, braze-on, down swing
Rear derailleur
Shimano Ultegra R8150 Di2, 34T max cog
*Crank
Size: XS, S
Shimano Ultegra R8100, 50/34, 160mm length
Size: M, ML
Shimano Ultegra R8100, 50/34, 165 mm length
Size: L, XL
Shimano Ultegra R8100, 50/34, 170 mm length
Bottom bracket
Praxis, T47 threaded, internal bearing
Cassette
Shimano Ultegra R8101, 11-34, 12-speed
Chain
Shimano Ultegra/XT M8100
Max. chainring size
See service manual

Wheels
Wheel front
Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100×12 mm thru axle
Wheel rear
Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, Shimano 11/12-speed freehub, 142×12 mm thru axle
Skewer front
Bontrager Switch chamfered thru axle
Skewer rear
Bontrager Switch chamfered thru axle
Tyre
Bontrager Kwaremont RSL, Tubeless Ready, GR puncture protection, aramid bead, 320 tpi, 700x35mm
Tube
Pirelli P Zero SmarTube, TPU
Max tyre size
40 mm (as measured, see manual for details)

Components
Saddle
Verse Short Pro, carbon rails, 145 mm width
Seatpost
Bontrager RSL carbon, 27.2 mm, 5 mm offset
*Handlebar
Size: XS
Bontrager Pro Riser, carbon, 20mm rise, 31.8, 70mm reach, 36cm width
Size: S
Bontrager Pro Riser, carbon, 20mm rise, 31.8, 70mm reach, 38cm width
Size: M, ML
Bontrager Pro Riser, carbon, 20mm rise, 31.8, 70mm reach, 40cm width
Size: L, XL
Bontrager Pro Riser, carbon, 20mm rise, 31.8, 70mm reach, 42cm width
Handlebar tape
Trek gel cork
*Stem
Size: XS
Trek RCS Pro, -7-degree, 80 mm length
Size: S
Trek RCS Pro, -7-degree, 90 mm length
Size: M
Trek RCS Pro, -7-degree, 100 mm length
Size: ML, L
Trek RCS Pro, -7-degree, 110 mm length
Size: XL
Trek RCS Pro, -7 degree, 120 mm length
Brake rotor
Shimano CL800, CentreLock, 160 mm
Rotor size
Max brake rotor sizes: 180mm front, 160 rear
