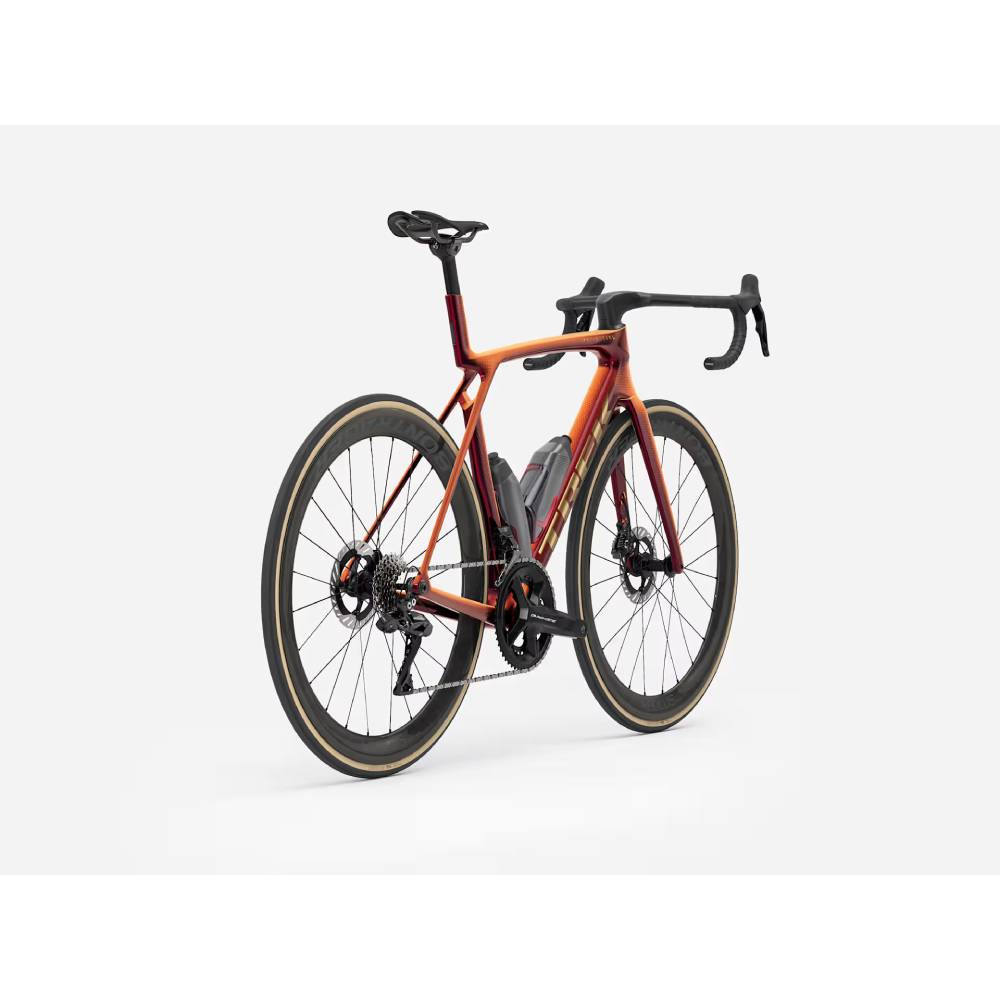

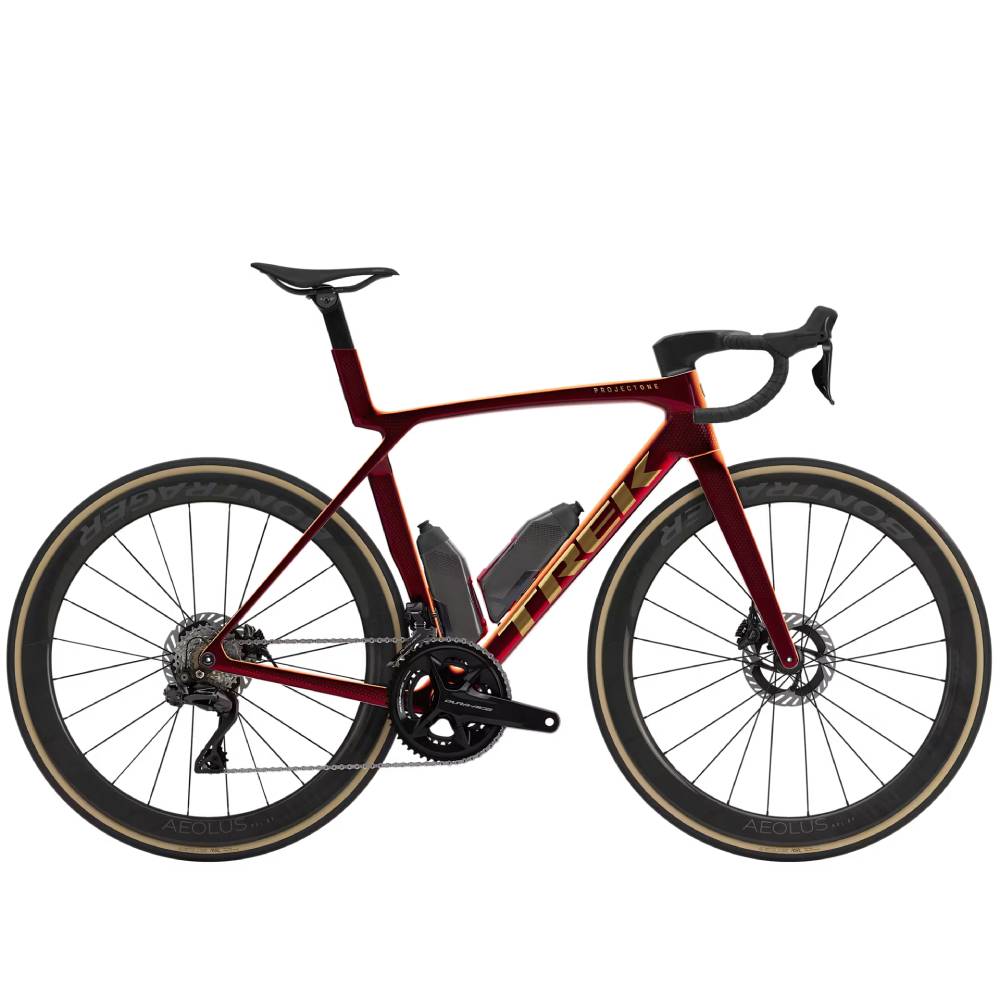

Trek Madone SLR 7 Gen 8

Madone SLR 7 Gen 8 is an aero, featherlight road bike built to race. Its 900 Series OCLV Carbon frame cuts weight and adds aero gains, while IsoFlow tech boosts comfort without sacrificing speed. It’s race-ready with a wireless 2×12 Shimano Ultegra Di2 groupset, Bontrager Aeolus Pro 51 wheels, a Trek Aero RSL one-piece bar/stem, and RSL Aero Bottles and Cages for added drag reduction.

Frameset
Frame with Fork

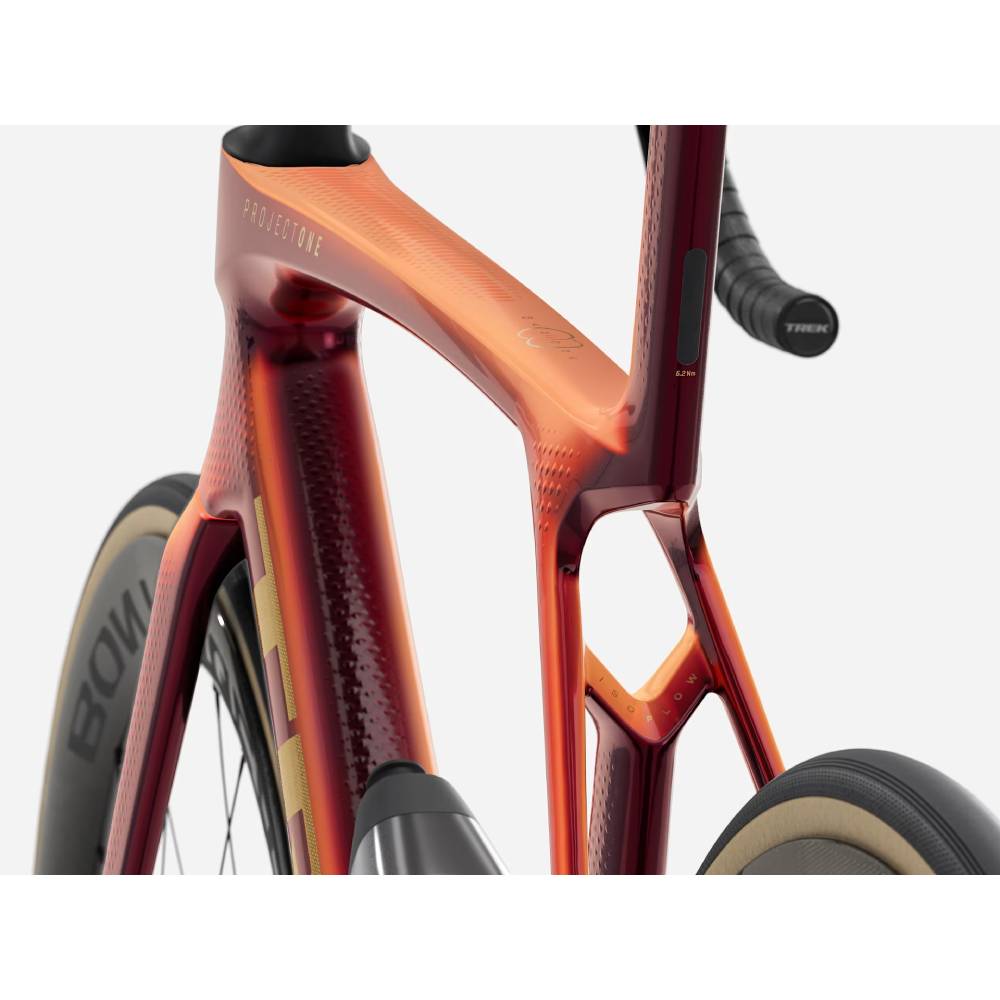

900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142×12 mm thru axle
Fork
Madone Gen 8 one-piece carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12×100 mm chamfered thru axle

Weight
Weight
ML – 7.52 kg/16.58 lb (with TLR sealant, no tubes, no bottles/cages)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

E-system
Battery
Shimano BT-DN300

Drivetrain
*Shifter
Size: XS, S, M, ML, L
Shimano Ultegra R8171 Di2, 12-speed
Size: XS, S, M, ML, L, XL
Shimano Ultegra R8170 Di2, 12-speed
Front derailleur
Shimano Ultegra R8150 Di2, braze-on, down swing
Rear derailleur
Shimano Ultegra R8150 Di2, 34T max cog
*Crank
Size: XS, S
Shimano Ultegra R8100, 52/36, 160mm length
Size: XS, S, M, ML
Shimano Ultegra R8100, 52/36, 165 mm length
Size: M, ML
Shimano Ultegra R8100, 52/36, 170 mm length
Size: ML, L, XL
Shimano Ultegra R8100, 52/36, 172.5 mm length
Bottom bracket
Praxis, T47 threaded, internal bearing
Cassette
Shimano Ultegra R8101, 11-30, 12-speed
Chain
Shimano Ultegra/XT M8100
Max. chainring size
1x: 54T, 2x: 56/43

Wheels
Wheel front
Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100×12 mm thru axle
Wheel rear
Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, Shimano 11/12-speed freehub, 142×12 mm thru axle
Skewer front
Bontrager Switch chamfered thru axle
Skewer rear
Bontrager Switch chamfered thru axle
*Tyre
Size: XS, S, M, ML, L, XL
Bontrager Aeolus RSL RD, Tubeless-Ready, cotton construction, aramid bead, 170 tpi, 700×28 mm
Size: XS, S, M, ML, L, XL
Pirelli P Zero Race TLR RS, 120 tpi, tubeless-compatible, 700×28 mm
Size: XS, S, M, ML, L, XL
Pirelli P Zero Race, 120 tpi, tubeless-compatible, 700×28 mm
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
Tube
Pirelli P Zero SmarTube, TPU
Max tyre size
32mm (as measured, see manual for details)

Components
*Saddle
Size: XS, S, M, ML, L, XL
Bontrager Aeolus Pro, carbon rails, 145 mm width
Size: XS, S, M, ML, L
Trek Aeolus Pro, carbon fibre rails, AirLoom lattice 145 mm width
Seatpost
Madone aero carbon seat post, 0 mm offset, short length
*Handlebar/stem (integrated)
Size: XS
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 35 cm control width, 38 cm drop width, 80 mm stem length
Size: S
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 37 cm control width, 40 cm drop width, 90 mm stem length
Size: M
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 90 mm stem length
Size: ML, L
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 100 mm stem length
Size: XL
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 41 cm control width, 44 cm drop width, 110 mm stem length
*Handlebar tape
Size: XS, S, M, ML, L, XL
Trek EcoTack
Size: XS, S, M, ML
Trek gel cork
Brake rotor
Shimano CL800, CentreLock, 160 mm
Rotor size
Max brake rotor sizes: 180 mm front, 160 mm rear
